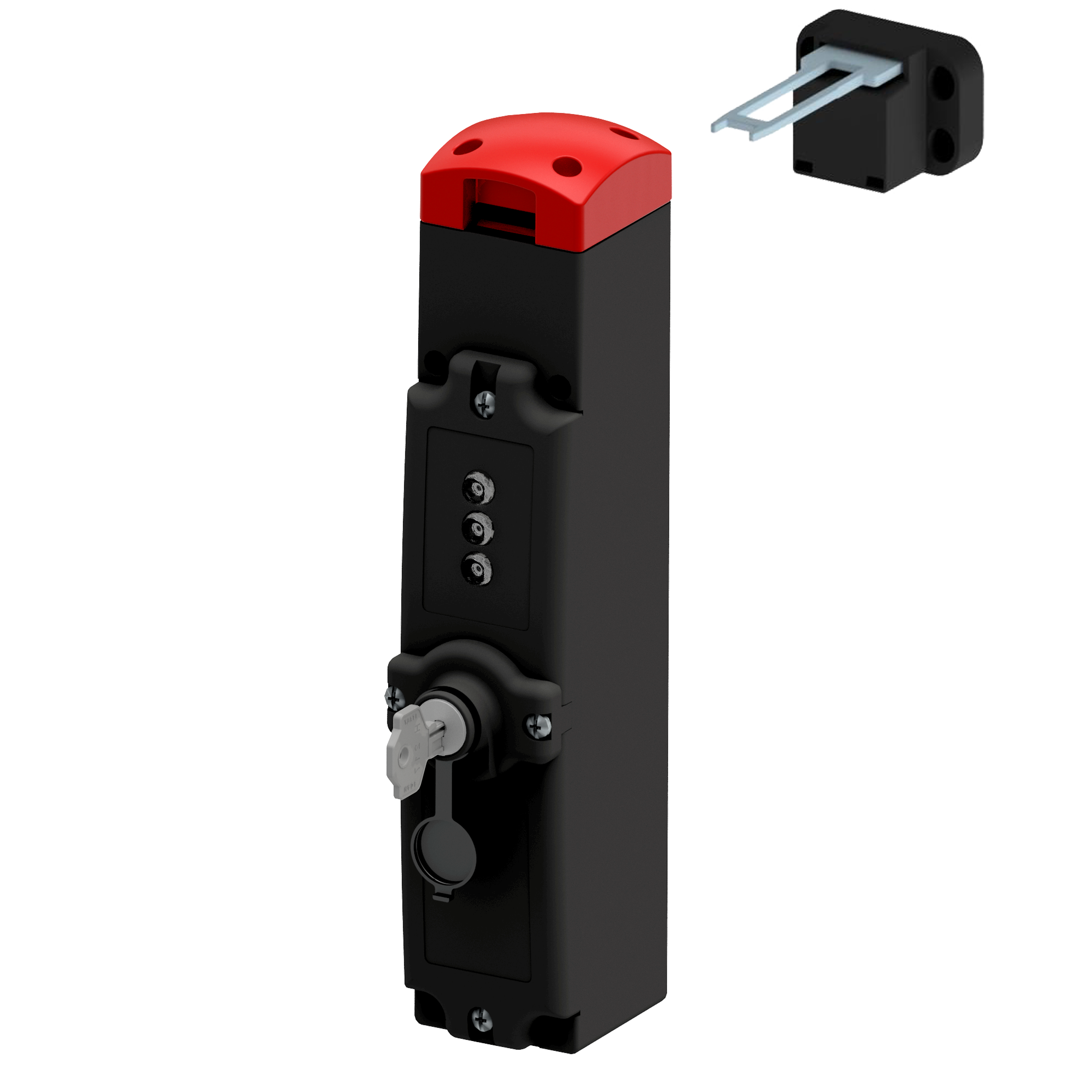

Electromagnetic interlocking device RFID coded
Thermoplastic head and thermoplastic enclosure
One inlet for M20x1.5 cable gland
Standard head orientation 0°

Electrical interlock: Actuator locked when solenoid is excited.

Manual release: It is possible to unlock the device by using the key on the cover

24Vdc supply solenoid

Outputs
two safety contacts for door status monitoring (2NC)
One signalling contact for actuator status monitoring (1NC)

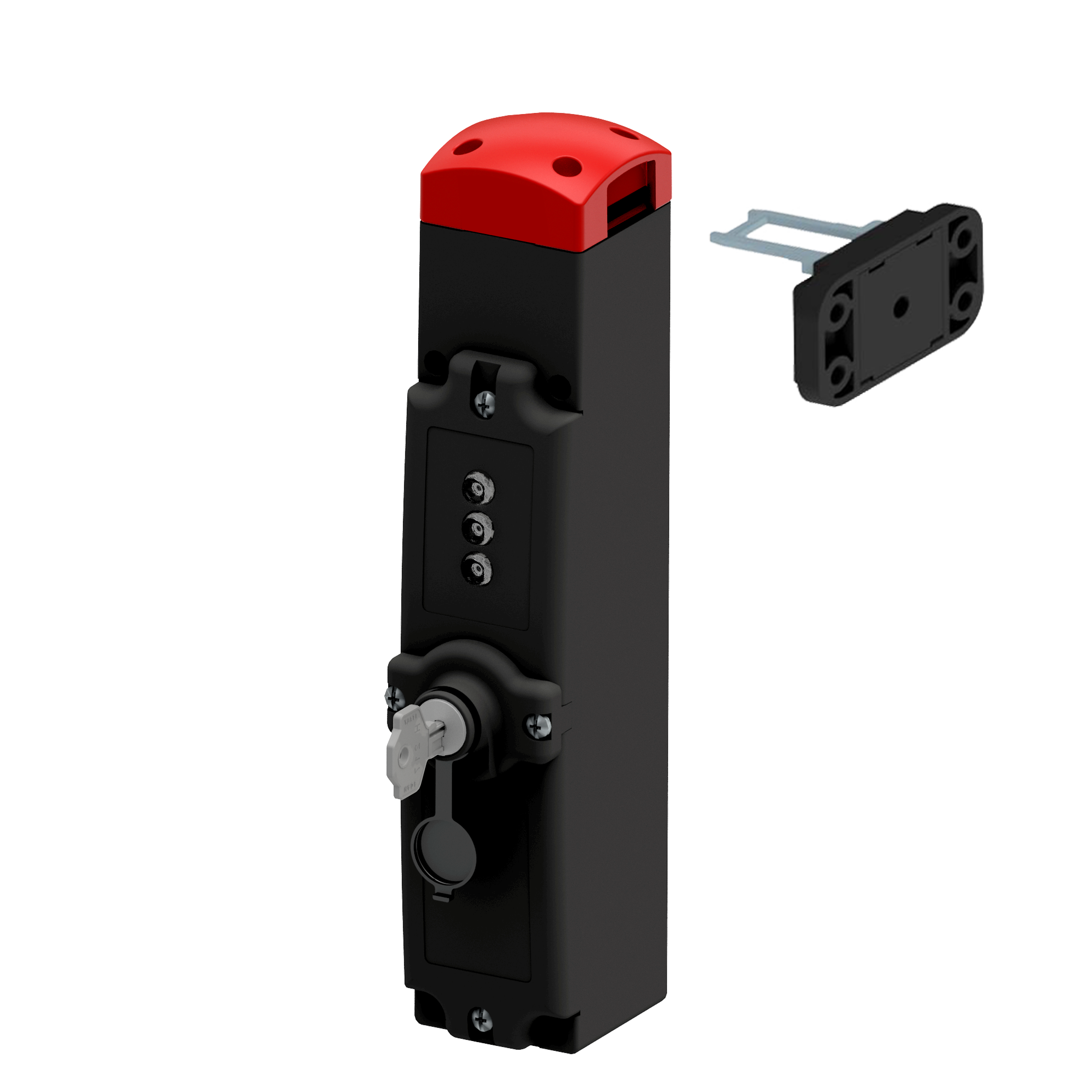

Electromagnetic interlocking device RFID coded
Thermoplastic head and thermoplastic enclosure
One inlet for M20x1.5 cable gland
90° right head orientation

Electrical interlock: Actuator locked when solenoid is excited.

Manual release: It is possible to unlock the device by using the key on the cover

24Vdc supply solenoid

Outputs
two safety contacts for door status monitoring (2NC)
One signalling contact for actuator status monitoring (1NC)

Electromagnetic interlocking device RFID coded
Thermoplastic head and thermoplastic enclosure
One inlet for M20x1.5 cable gland
180° right head orientation

Electrical interlock: Actuator locked when solenoid is excited.

Manual release: It is possible to unlock the device by using the key on the cover

24Vdc supply solenoid

Outputs
two safety contacts for door status monitoring (2NC)
One signalling contact for actuator status monitoring (1NC)

Electromagnetic interlocking device RFID coded
Thermoplastic head and thermoplastic enclosure
One inlet for M20x1.5 cable gland
270° right head orientation

Electrical interlock: Actuator locked when solenoid is excited.

Manual release: It is possible to unlock the device by using the key on the cover

24Vdc supply solenoid

Outputs
two safety contacts for door status monitoring (2NC)
One signalling contact for actuator status monitoring (1NC)
