FEP5KRS1FR3-024E-A30

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    M20x1 cable inlet
    Standard head orientation 0°

    Electrical interlock: Actuator locked when solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A30 – Rear escape release (L=30mm)

    FEP5KRS1FR3-024E-A45

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    M20x1 cable inlet
    Standard head orientation 0°

    Electrical interlock: Actuator locked when solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A45 – Rear escape release (L=45mm)

    FEP5KRS1FR3-024E-A60

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    M20x1 cable inlet
    Standard head orientation 0°

    Electrical interlock: Actuator locked when solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A60 – Rear escape release (L=60mm)

    FEP5KRS2FR3-024E-A30

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    M20x1 cable inlet
    Head orientation 90°DX

    Electrical interlock: Actuator locked when solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A30 – Rear escape release (L=30mm)

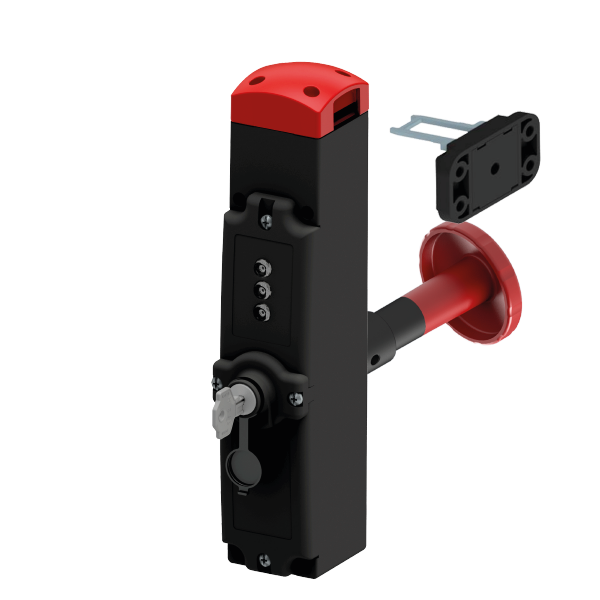

    FEP5KRS2FR3-024E-A45

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    M20x1 cable inlet
    Head orientation 90°DX

    Electrical interlock: Actuator locked when solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A45 – Rear escape release (L=45mm)

    FEP5KRS2FR3-024E-A60

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    M20x1 cable inlet
    Head orientation 90°DX

    Electrical interlock: Actuator locked when solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A60 – Rear escape release (L=60mm)

    FEP5KRS3FR3-024E-A30

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    M20x1 cable inlet
    Head orientation 180°

    Electrical interlock: Actuator locked when solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A30 – Rear escape release (L=30mm)

    FEP5KRS3FR3-024E-A45

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    M20x1 cable inlet
    Head orientation 180°

    Electrical interlock: Actuator locked when solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A45 – Rear escape release (L=45mm)

    FEP5KRS3FR3-024E-A60

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    M20x1 cable inlet
    Head orientation 180°

    Electrical interlock: Actuator locked when solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A60 – Rear escape release (L=60mm)

    FEP5KRS4FR3-024E-A30

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    M20x1 cable inlet
    Head orientation 270° SX

    Electrical interlock: Actuator locked when solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A30 – Rear escape release (L=30mm)

    FEP5KRS4FR3-024E-A45

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    M20x1 cable inlet
    Head orientation 270° SX

    Electrical interlock: Actuator locked when solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A45 – Rear escape release (L=45mm)

    FEP5KRS4FR3-024E-A60

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    M20x1 cable inlet
    Head orientation 270° SX

    Electrical interlock: Actuator locked when solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A60 – Rear escape release (L=60mm)
