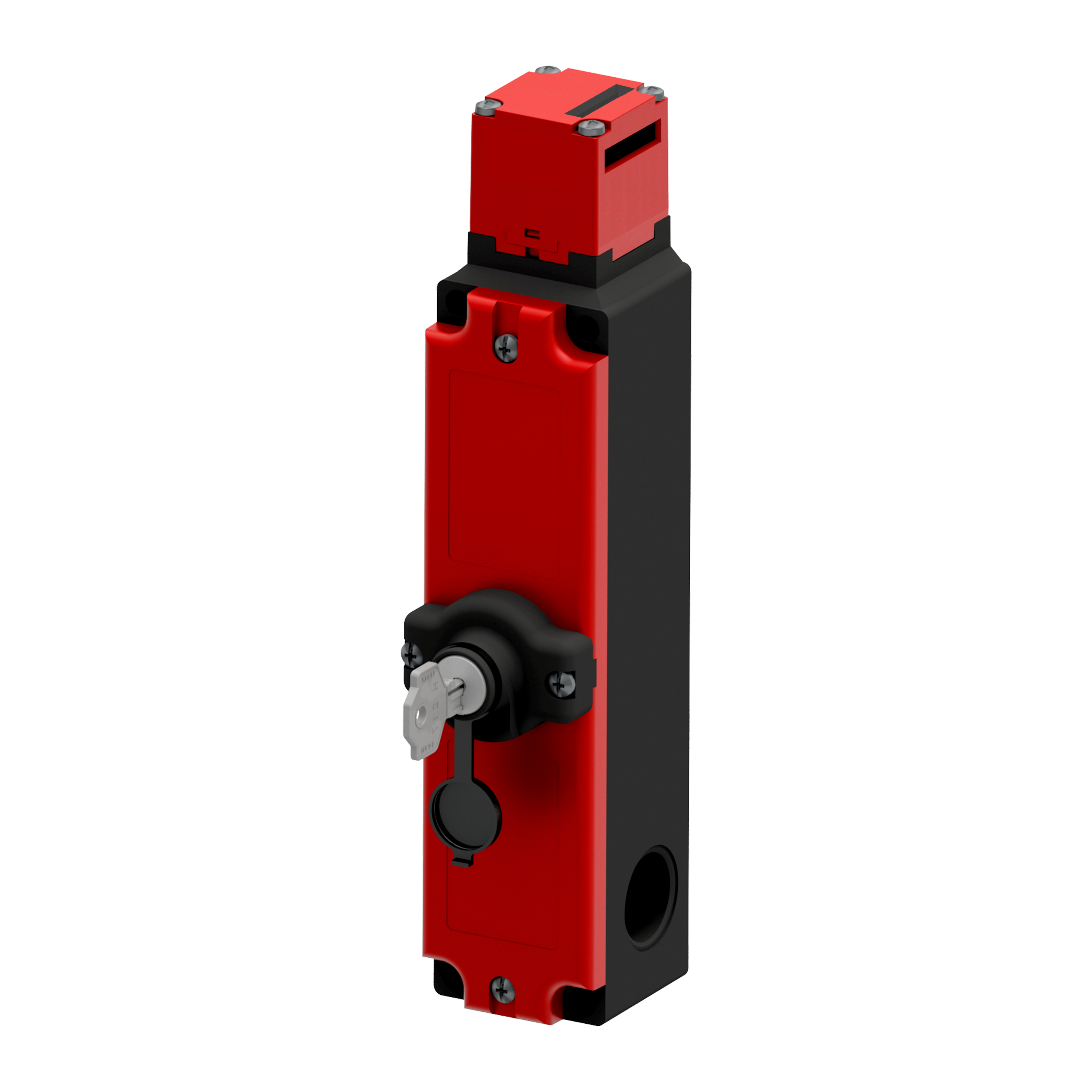

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – 0° head orientation

Electrical interlock: actuator blocked when the solenoid is excited.

Manual release: It is possible to unlock the device by using the key on the cover

Solenoid supply voltage: 12V DC

Microswitch FA1:
One contact moved by actuator (1NC)
Three contacts moved by solenoid (2NC + 1NO)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – 0° head orientation

Electrical interlock: actuator blocked when the solenoid is excited.

Manual release:It is possible to unlock the device by using the key on the cover

Solenoid supply voltage: 12V DC

Microswitch FA2:
One contact moved by actuator (1NO)
Three contacts moved by solenoid (2NC + 1NO)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – 0° head orientation

Electrical interlock: actuator blocked when the solenoid is excited.

Manual release: It is possible to unlock the device by using the key on the cover

Solenoid supply voltage: 12V DC

Microswitch FA3:
Two contacts moved by actuator (1NO + 1NC)
Two contacts moved by solenoid (2NC)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Manual release: It is possible to unlock the device by using the key on the cover

Solenoid supply voltage: 12V DC

Microswitch FA4:
Two contacts moved by actuator (1NC + 1NO)
Two contacts moved by solenoid (1NC + 1NO)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Manual release: It is possible to unlock the device by using the key on the cover

Solenoid supply voltage: 12V DC

Microswitch FA5:
One contact moved by actuator (1NC)
Three contacts moved by solenoid (3NC)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Manual release: It is possible to unlock the device by using the key on the cover

Solenoid supply voltage: 12V DC

Microswitch FA6:
One contact moved by actuator (1NO)
Three contacts moved by solenoid (3NC)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Manual release: It is possible to unlock the device by using the key on the cover

Solenoid supply voltage: 12V DC

Microswitch FA7:
Two contacts moved by actuator (2NC)
Two contacts moved by solenoid (1NO + 1NC)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Manual release: It is possible to unlock the device by using the key on the cover

Solenoid supply voltage: 12V DC

Microswitch FA8:
Two contacts moved by actuator (2NC)
Two contacts moved by solenoid (2NC)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Manual release: It is possible to unlock the device by using the key on the cover

Solenoid supply voltage: 12V DC

Microswitch FA9:
Two contacts moved by actuator (2NO)
Two contacts moved by solenoid (2NC)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Manual release: It is possible to unlock the device by using the key on the cover

Solenoid supply voltage: 12V DC

Microswitch FB1:
Four contacts moved by solenoid (4NC)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Manual release: It is possible to unlock the device by using the key on the cover

Solenoid supply voltage: 12V DC

Microswitch FB2:
Four contacts moved by actuator (4NC)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Manual release: It is possible to unlock the device by using the key on the cover

Solenoid supply voltage: 12V DC

Microswitch FB3:
Three contacts moved by actuator (3NC)
One contact moved by solenoid (1NC)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – 90° head orientation

Electrical interlock: actuator blocked when the solenoid is excited.

Manual release: It is possible to unlock the device by using the key on the cover

Solenoid supply voltage: 12V DC

Microswitch FA1:
One contact moved by actuator (1NC)
Three contacts moved by solenoid (2NC + 1NO)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – 90° head orientation

Electrical interlock: actuator blocked when the solenoid is excited.

Manual release:It is possible to unlock the device by using the key on the cover

Solenoid supply voltage: 12V DC

Microswitch FA2:
One contact moved by actuator (1NO)
Three contacts moved by solenoid (2NC + 1NO)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – 90° head orientation

Electrical interlock: actuator blocked when the solenoid is excited.

Manual release: It is possible to unlock the device by using the key on the cover

Solenoid supply voltage: 12V DC

Microswitch FA3:
Two contacts moved by actuator (1NO + 1NC)
Two contacts moved by solenoid (2NC)
