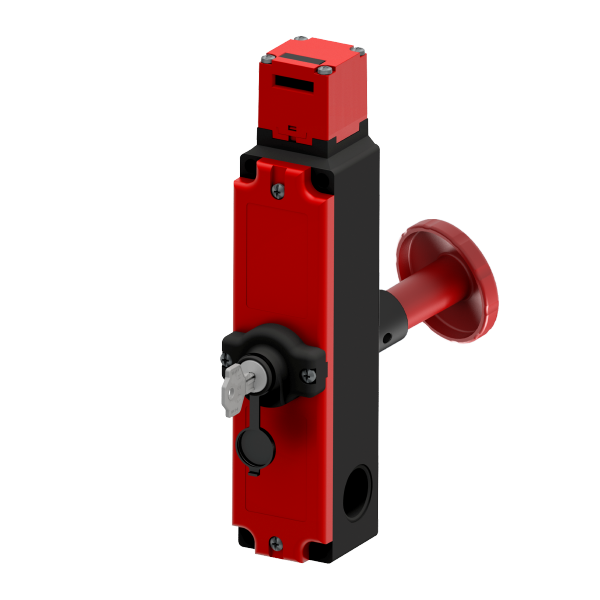

FEP5KPS1FA1-024E-A30

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    Solenoid supply voltage: 24V AC/DC

    Microswitch FA1:
    One contact moved by actuator (1NC)
    Three contacts moved by solenoid (2NC + 1NO)

    A30 – Rear escape release (L=30mm)

    FEP5KPS1FA1-024E-A45

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    Solenoid supply voltage: 24V AC/DC

    Microswitch FA1:
    One contact moved by actuator (1NC)
    Three contacts moved by solenoid (2NC + 1NO)

    A45 – Rear escape release (L=45mm)

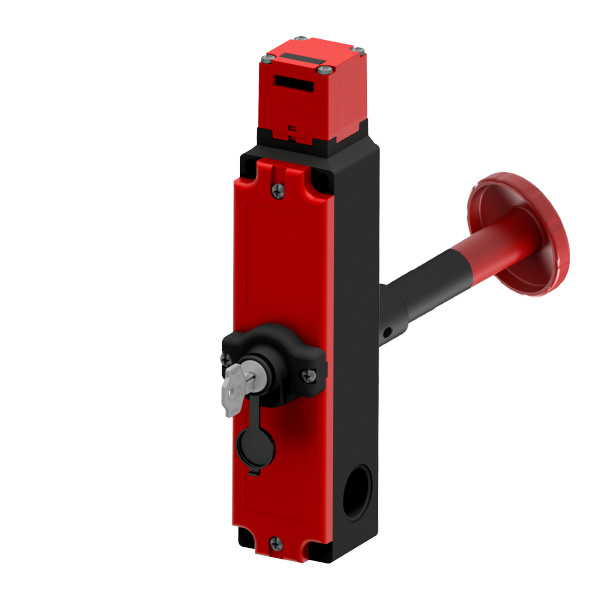

    FEP5KPS1FA1-024E-A60

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    Solenoid supply voltage: 24V AC/DC

    Microswitch FA1:
    One contact moved by actuator (1NC)
    Three contacts moved by solenoid (2NC + 1NO)

    A60 – Rear escape release (L=60mm)

    FEP5KPS1FA2-024E-A30

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – 0° head orientation

    Electrical interlock: actuator blocked when the solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    Solenoid supply voltage: 24V AC/DC

    Microswitch FA2:
    One contact moved by actuator (1NO)
    Three contacts moved by solenoid (2NC + 1NO)

    A30 – Rear escape release (L=30mm)

    FEP5KPS1FA2-024E-A30

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    Solenoid supply voltage: 24V AC/DC

    Microswitch FA2:
    One contact moved by actuator (1NO)
    Three contacts moved by solenoid (2NC + 1NO)

    A30 – Rear escape release (L=30mm)

    FEP5KPS1FA2-024E-A45

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    Solenoid supply voltage:24V AC/DC

    Microswitch FA2:
    One contact moved by actuator (1NO)
    Three contacts moved by solenoid (2NC + 1NO)

    A45 – Rear escape release (L=45mm)

    FEP5KPS1FA2-024E-A60

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    Solenoid supply voltage: 24V AC/DC

    Microswitch FA2:
    One contact moved by actuator (1NO)
    Three contacts moved by solenoid (2NC + 1NO)

    A60 – Rear escape release (L=60mm)

    FEP5KPS1FA3-024E-A30

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    Solenoid supply voltage: 24V AC/DC

    Microswitch FA3:
    Two contacts moved by actuator (1NO+1NC)
    Two contacts moved by solenoid (2NC)

    A30 – Rear escape release (L=30mm)

    FEP5KPS1FA3-024E-A45

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    Solenoid supply voltage: 24V AC/DC

    Microswitch FA3:
    Two contacts moved by actuator (1NO+1NC)
    Two contacts moved by solenoid (2NC)

    A45 – Rear escape release (L=45mm)

    FEP5KPS1FA3-024E-A60

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    Solenoid supply voltage: 24V AC/DC

    Microswitch FA3:
    Two contacts moved by actuator (1NO+1NC)
    Two contacts moved by solenoid (2NC)

    A60 – Rear escape release (L=60mm)

    FEP5KPS1FA4-024E-A30

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    Solenoid supply voltage: 24V AC/DC

    Microswitch FA4:
    Two contacts moved by actuator (1NC + 1NO)
    Two contacts moved by solenoid (1NC + 1NO)

    A30 – Rear escape release (L=30mm)

    FEP5KPS1FA4-024E-A45

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    Solenoid supply voltage: 24V AC/DC

    Microswitch FA4:
    Two contacts moved by actuator (1NC + 1NO)
    Two contacts moved by solenoid (1NC + 1NO)

    A45 – Rear escape release (L=45mm)

    FEP5KPS1FA4-024E-A60

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    Solenoid supply voltage: 24V AC/DC

    Microswitch FA4:
    Two contacts moved by actuator (1NC + 1NO)
    Two contacts moved by solenoid (1NC + 1NO)

    A60 – Rear escape release (L=60mm)

    FEP5KPS1FA5-024E-A30

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    Solenoid supply voltage: 24V AC/DC

    Microswitch FA5:
    One contact moved by actuator (1NC)
    Three contacts moved by solenoid (3NC)

    A30 – Rear escape release (L=30mm)

    FEP5KPS1FA5-024E-A45

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    Solenoid supply voltage: 024V AC/DC

    Microswitch FA5:
    One contact moved by actuator (1NC)
    Three contacts moved by solenoid (3NC)

    A45 – Rear escape release (L=45mm)
