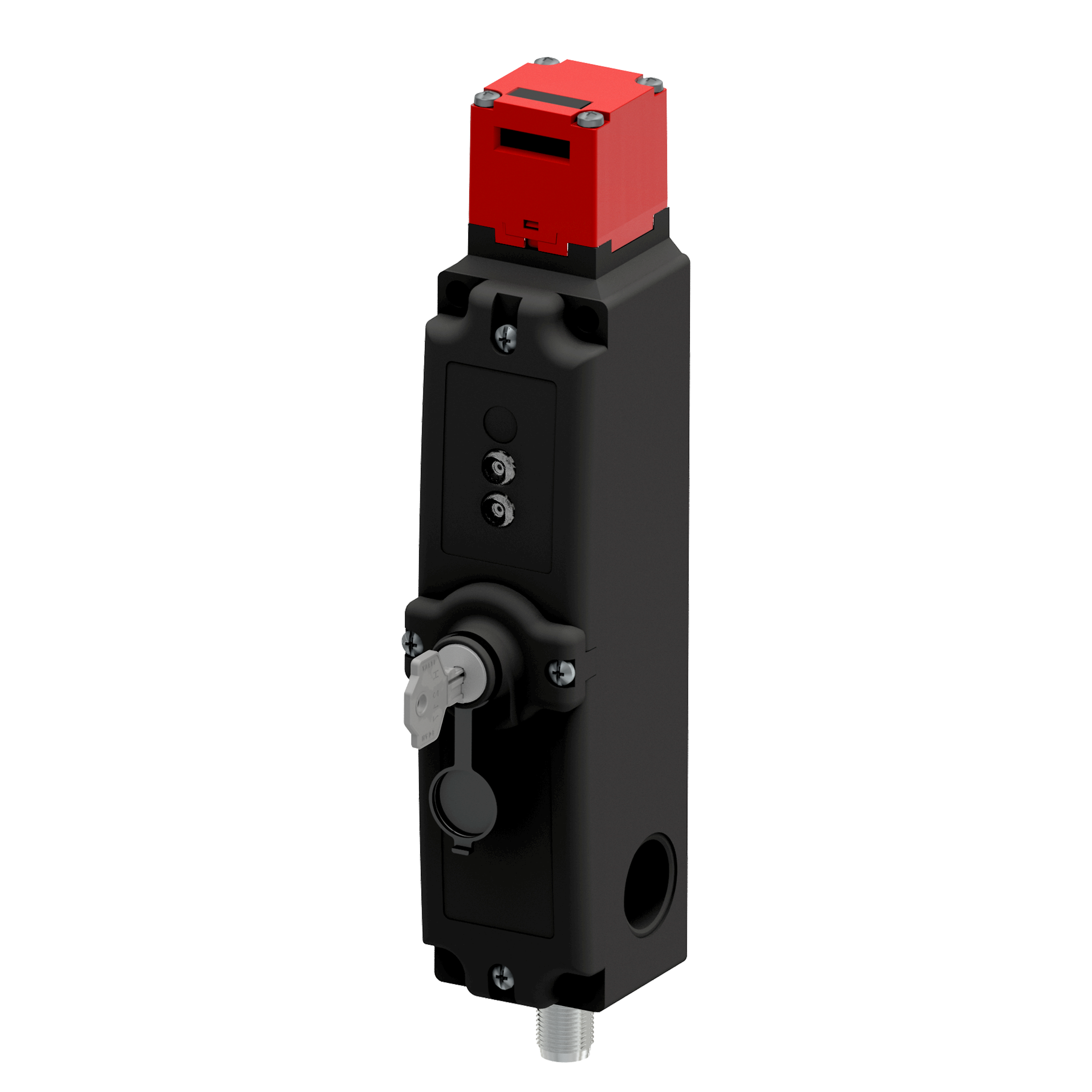

FEPMKPS1FL1-024E

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    LED signalling for guard status detection: LED LOCK green if the gate is locked, LED LOCK red if the gate is unlocked.

    Electrical interlock: actuator blocked when the solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    Solenoid supply voltage: 24V DC
    8 poles male connector

    Microswitch FL1:

    One contact moved by actuator (1NC)
    Two contacts moved by solenoid (2NC)

    FEPMKPS1FL2-024E

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard 0° head orientation

    LED signalling for guard status detection: LED LOCK green if the gate is locked, LED LOCK red if the gate is unlocked.

    Electrical interlock: actuator blocked when the solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    Solenoid supply voltage: 24V DC
    8 poles male connector

    Microswitch FL2:

    One contact moved by actuator (1NO)
    Two contacts moved by solenoid (2NC)

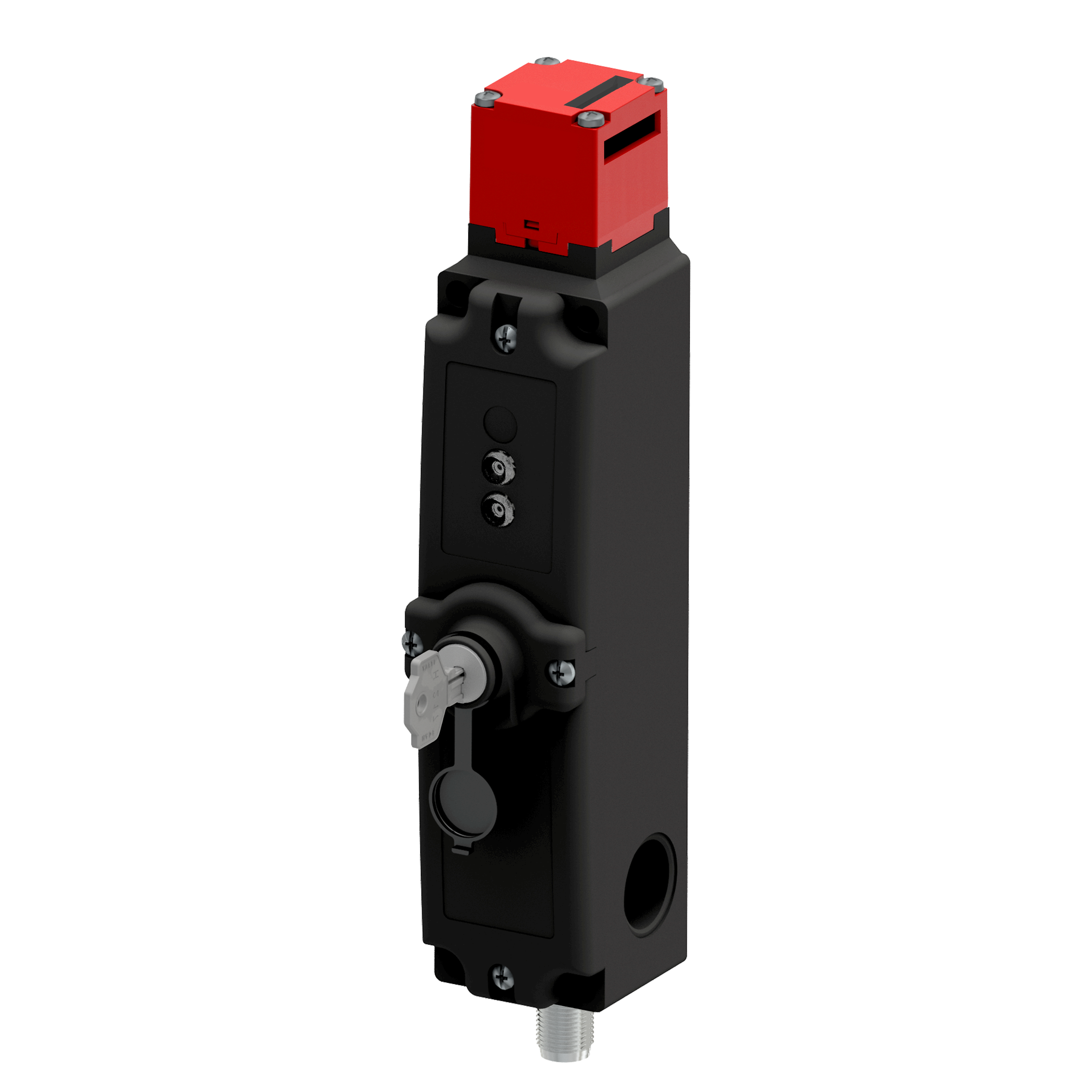

    FEPMKPS2FL1-024E

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – 90° right head orientation

    LED signalling for guard status detection: LED LOCK green if the gate is locked, LED LOCK red if the gate is unlocked.

    Electrical interlock: actuator blocked when the solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    Solenoid supply voltage: 24V DC
    8 poles male connector

    Microswitch FL1:

    One contact moved by actuator (1NC)
    Two contacts moved by solenoid (2NC)

    FEPMKPS2FL2-024E

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – 90° right head orientation

    LED signalling for guard status detection: LED LOCK green if the gate is locked, LED LOCK red if the gate is unlocked.

    Electrical interlock: actuator blocked when the solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    Solenoid supply voltage: 24V DC
    8 poles male connector

    Microswitch FL2:

    One contact moved by actuator (1NO)
    Two contacts moved by solenoid (2NC)

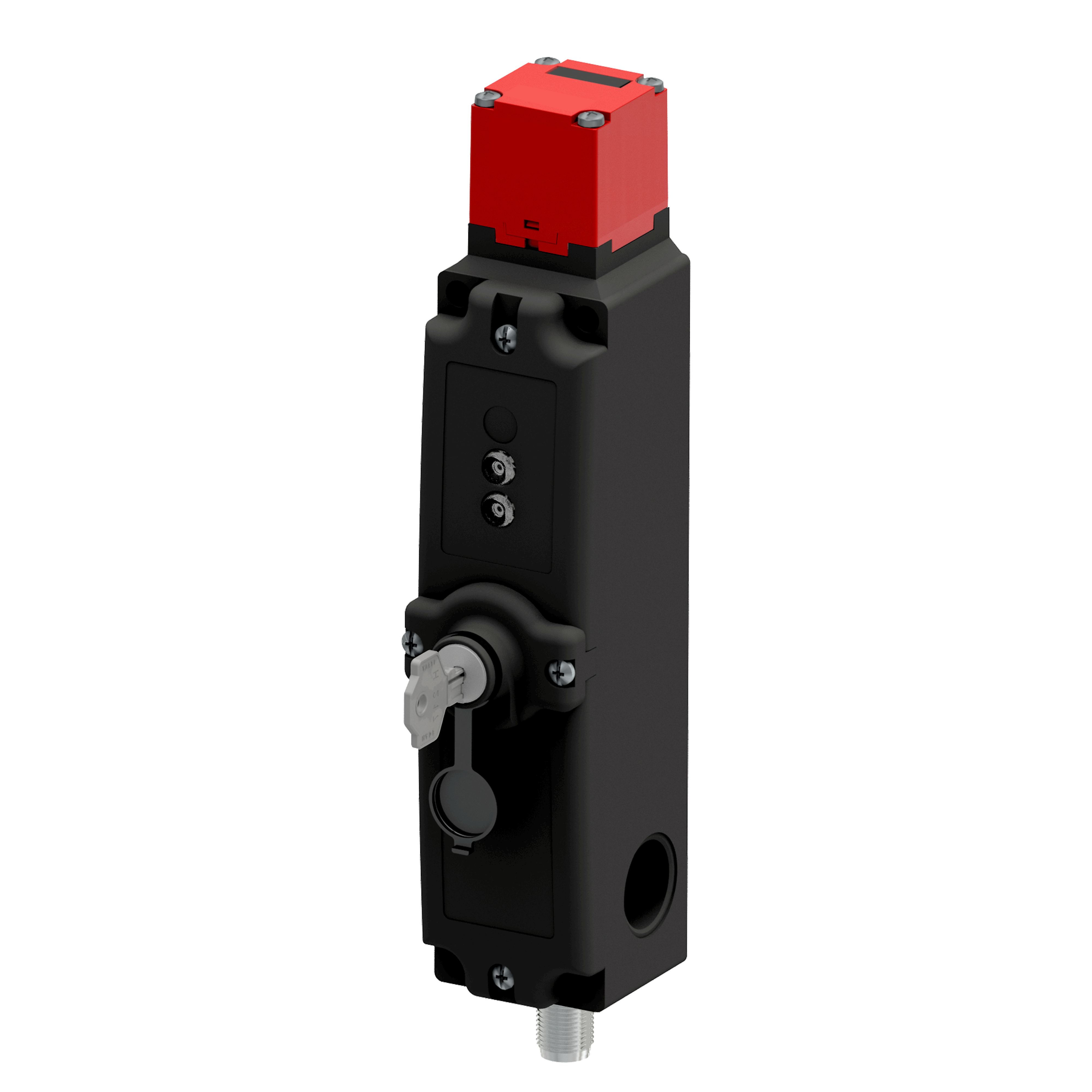

    FEPMKPS3FL1-024E

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – 180° right head orientation

    LED signalling for guard status detection: LED LOCK green if the gate is locked, LED LOCK red if the gate is unlocked.

    Electrical interlock: actuator blocked when the solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    Solenoid supply voltage: 24V DC
    8 poles male connector

    Microswitch FL1:

    One contact moved by actuator (1NC)
    Two contacts moved by solenoid (2NC)

    FEPMKPS3FL2-024E

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – 180° right head orientation

    LED signalling for guard status detection: LED LOCK green if the gate is locked, LED LOCK red if the gate is unlocked.

    Electrical interlock: actuator blocked when the solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    Solenoid supply voltage: 24V DC
    8 poles male connector

    Microswitch FL2:

    One contact moved by actuator (1NO)
    Two contacts moved by solenoid (2NC)

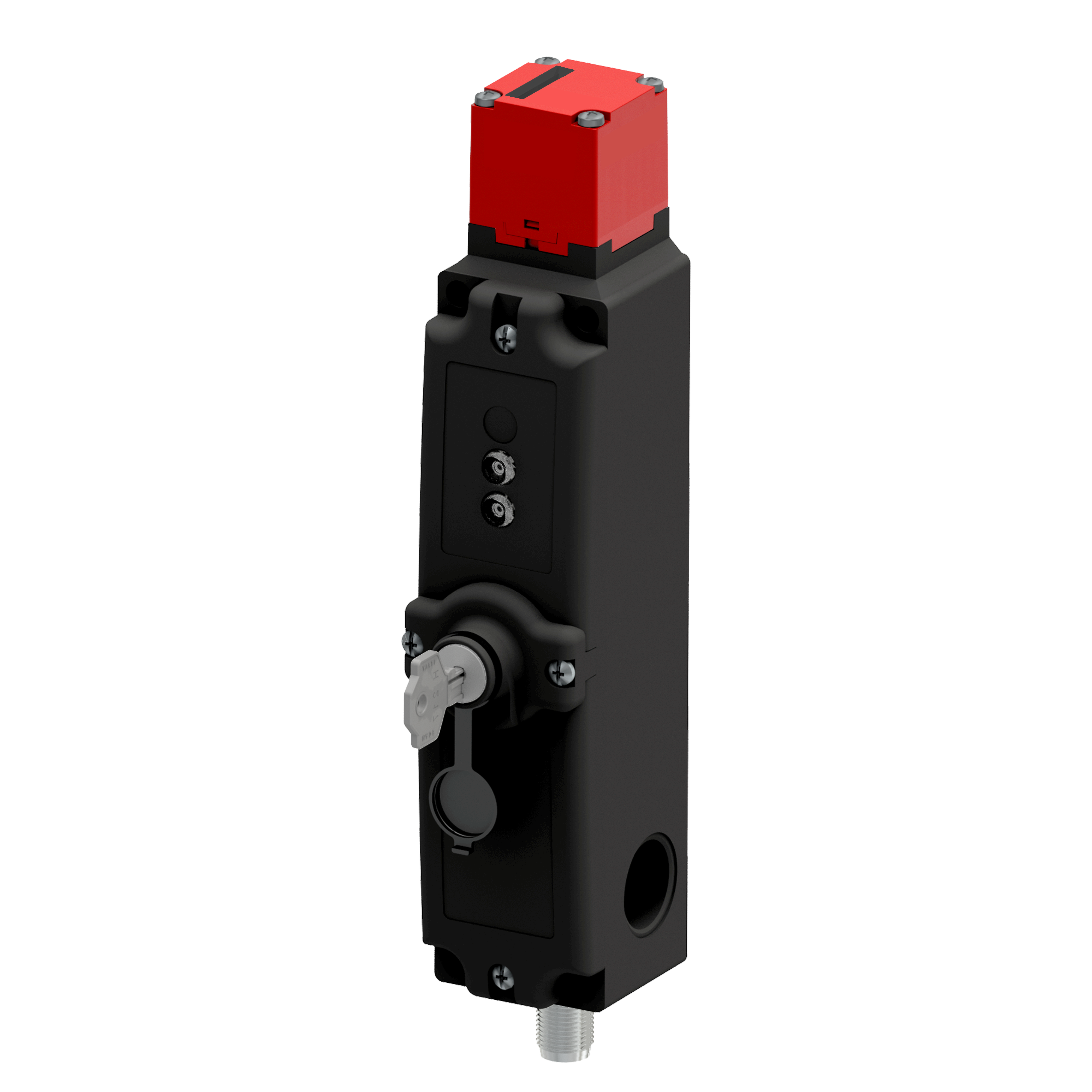

    FEPMKPS4FL1-024E

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – 270° right head orientation

    LED signalling for guard status detection: LED LOCK green if the gate is locked, LED LOCK red if the gate is unlocked.

    Electrical interlock: actuator blocked when the solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    Solenoid supply voltage: 24V DC
    8 poles male connector

    Microswitch FL1:

    One contact moved by actuator (1NC)
    Two contacts moved by solenoid (2NC)

    FEPMKPS4FL2-024E

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – 270° right head orientation

    LED signalling for guard status detection: LED LOCK green if the gate is locked, LED LOCK red if the gate is unlocked.

    Electrical interlock: actuator blocked when the solenoid is excited.

    Manual release: It is possible to unlock the device by using the key on the cover

    Solenoid supply voltage: 24V DC
    8 poles male connector

    Microswitch FL2:

    One contact moved by actuator (1NO)
    Two contacts moved by solenoid (2NC)
