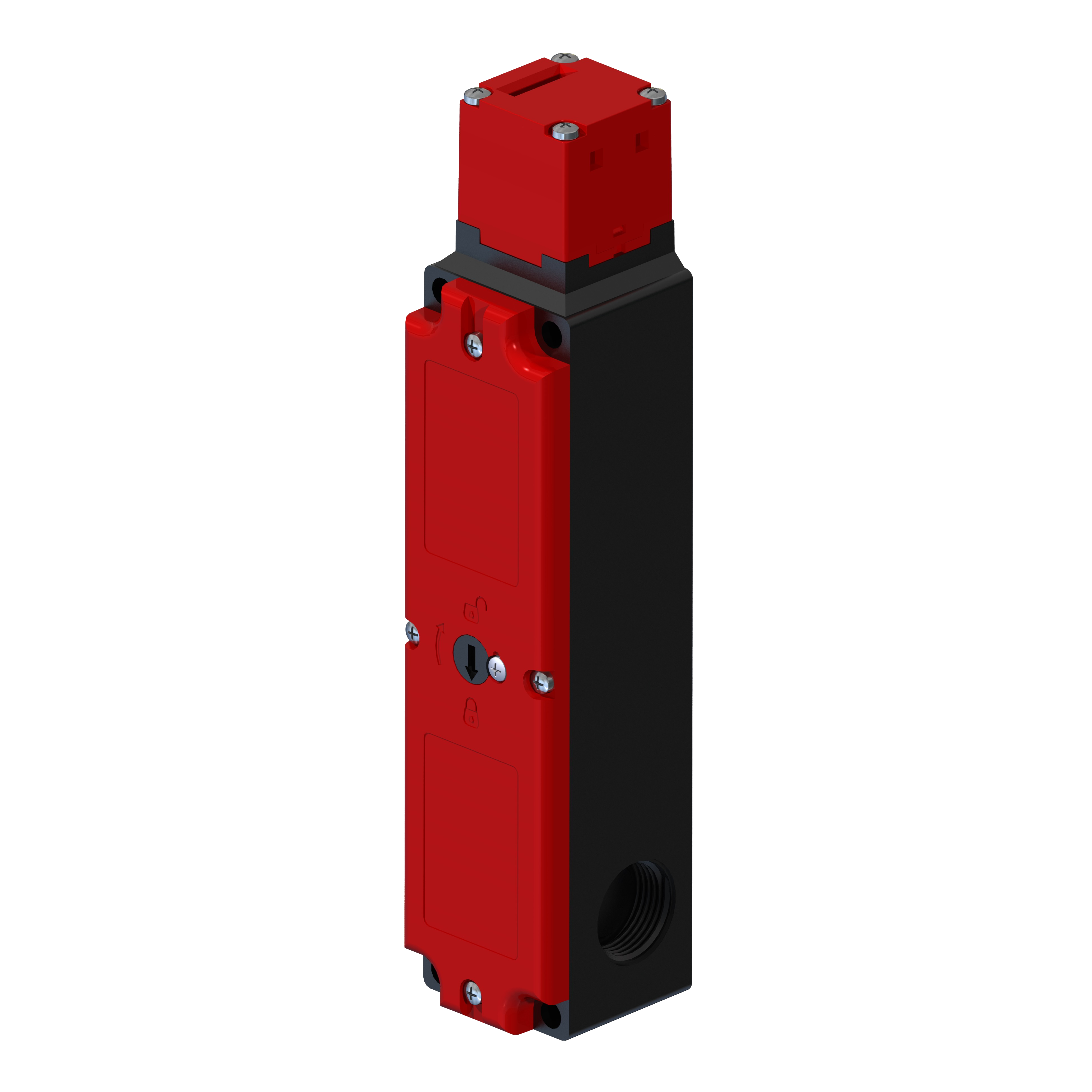

FEP5KP1FA1-230E

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Solenoid supply voltage: 230V AC

    Microswitch FA1:

    One contact moved by actuator (1NC)
    Three contacts moved by solenoid (2NC + 1NO)

    FEP5KP1FA2-230E

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Solenoid supply voltage: 230V AC

    Microswitch FA2:

    One contact moved by actuator (1NO)
    Three contacts moved by solenoid (1NO + 2NC)

    FEP5KP1FA3-230E

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Solenoid supply voltage: 230V AC

    Microswitch FA3:

    Two contacts moved by actuator (1NO + 1NC)
    Two contacts moved by solenoid (2NC)

    FEP5KP1FA4-230E

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Solenoid supply voltage: 230V AC

    Microswitch FA4:

    Two contacts moved by actuator (1NC + 1NO)
    Two contacts moved by solenoid (1NC + 1NO)

    FEP5KP1FA5-230E

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Solenoid supply voltage: 230V AC

    Microswitch FA5:

    One contact moved by actuator (1NC)
    Three contacts moved by solenoid (3NC)

    FEP5KP1FA6-230E

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Solenoid supply voltage: 230V AC

    Microswitch FA6:

    One contact moved by actuator (1NO)
    Three contacts moved by solenoid (3NC)

    FEP5KP1FA7-230E

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Solenoid supply voltage: 230V AC

    Microswitch FA7:

    Two contacts moved by actuator (2NC)
    Two contacts moved by solenoid (1NO + 1NC)

    FEP5KP1FA8-230E

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Solenoid supply voltage: 230V AC

    Microswitch FA8:

    Two contacts moved by actuator (2NC)
    Two contacts moved by solenoid (2NC)

    FEP5KP1FA9-230E

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Solenoid supply voltage: 230V AC

    Microswitch FA9:

    Two contacts moved by actuator (2NO)
    Two contacts moved by solenoid (2NC)

    FEP5KP1FB1-230E

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Solenoid supply voltage: 230V AC

    Microswitch FB1:

    Four contacts moved by solenoid (4NC)

    FEP5KP1FB2-230E

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Solenoid supply voltage: 230V AC

    Microswitch FB2:

    Four contacts moved by actuator (4NC)

    FEP5KP1FB3-230E

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Solenoid supply voltage: 230V AC

    Microswitch FB3:

    Three contacts moved by actuator (3NC)
    One contact moved by solenoid (1NC)

    FEP5KP2FA1-230E

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Head orientation 90°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Solenoid supply voltage: 230V AC

    Microswitch FA1:

    One contact moved by actuator (1NC)
    Three contacts moved by solenoid (2NC + 1NO)

    FEP5KP2FA2-230E

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Head orientation 90°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Solenoid supply voltage: 230V AC

    Microswitch FA2:

    One contact moved by actuator (1NO)
    Three contacts moved by solenoid (1NO + 2NC)

    FEP5KP2FA3-230E

    Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Head orientation 90°

    Electrical interlock: actuator blocked when the solenoid is excited.

    Solenoid supply voltage: 230V AC

    Microswitch FA3:

    Two contacts moved by actuator (1NO + 1NC)
    Two contacts moved by solenoid (2NC)
