Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Solenoid supply voltage: 12V DC

Microswitch FA1:
One contact moved by actuator (1NC)
Three contacts moved by solenoid (2NC + 1NO)

A30 – Rear escape release (L=30mm)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Solenoid supply voltage: 12V DC

Microswitch FA1:
One contact moved by actuator (1NC)
Three contacts moved by solenoid (2NC + 1NO)

A45 – Rear escape release (L=45mm)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Solenoid supply voltage: 12V DC

Microswitch FA1:
One contact moved by actuator (1NC)
Three contacts moved by solenoid (2NC + 1NO)

A60 – Rear escape release (L=60mm)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Solenoid supply voltage: 12V DC

Microswitch FA2:
One contact moved by actuator (1NO)
Three contacts moved by solenoid (1NO + 2NC)

A30 – Rear escape release (L=30mm)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Solenoid supply voltage: 12V DC

Microswitch FA2:
One contact moved by actuator (1NO)
Three contacts moved by solenoid (1NO + 2NC)

A45 – Rear escape release (L=45mm)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Solenoid supply voltage: 12V DC

Microswitch FA2:
One contact moved by actuator (1NO)
Three contacts moved by solenoid (1NO + 2NC)

A60 – Rear escape release (L=60mm)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Solenoid supply voltage: 12V DC

Microswitch FA3:
Two contacts moved by actuator (1NO + 1NC)
Two contacts moved by solenoid (2NC)

A30– Rear escape release (L30mm)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Solenoid supply voltage: 12V DC

Microswitch FA3:
Two contacts moved by actuator (1NO + 1NC)
Two contacts moved by solenoid (2NC)

A45– Rear escape release (L45mm)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Solenoid supply voltage: 12V DC

Microswitch FA3:
Two contacts moved by actuator (1NO + 1NC)
Two contacts moved by solenoid (2NC)

A60– Rear escape release (L60mm)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Solenoid supply voltage: 12V DC

Microswitch FA4:
Two contacts moved by actuator (1NC + 1NO)
Two contacts moved by solenoid (1NC + 1NO)

A30 – Rear escape release (L=30mm)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Solenoid supply voltage: 12V DC

Microswitch FA4:
Two contacts moved by actuator (1NC + 1NO)
Two contacts moved by solenoid (1NC + 1NO)

A45 – Rear escape release (L=45mm)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Solenoid supply voltage: 12V DC

Microswitch FA4:
Two contacts moved by actuator (1NC + 1NO)
Two contacts moved by solenoid (1NC + 1NO)

A60 – Rear escape release (L=60mm)

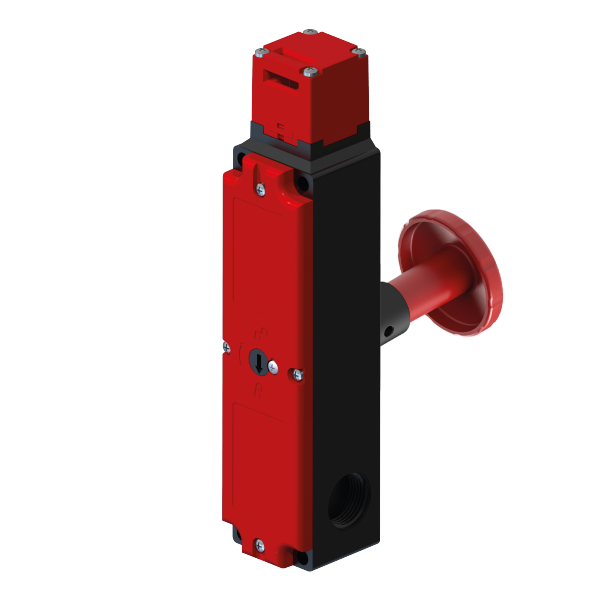

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Solenoid supply voltage: 12V DC

Microswitch FA5:
One contact moved by actuator (1NC)
Three contacts moved by solenoid (3NC)

A30 – Rear escape release (L=30mm)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Solenoid supply voltage: 12V DC

Microswitch FA5:
One contact moved by actuator (1NC)
Three contacts moved by solenoid (3NC)

A45 – Rear escape release (L=45mm)

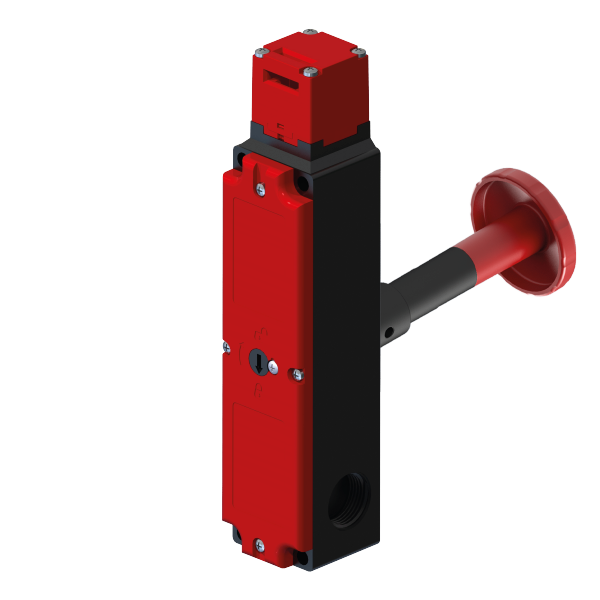

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

Electrical interlock: actuator blocked when the solenoid is excited.

Solenoid supply voltage: 12V DC

Microswitch FA5:
One contact moved by actuator (1NC)
Three contacts moved by solenoid (3NC)

A60 – Rear escape release (L=60mm)
