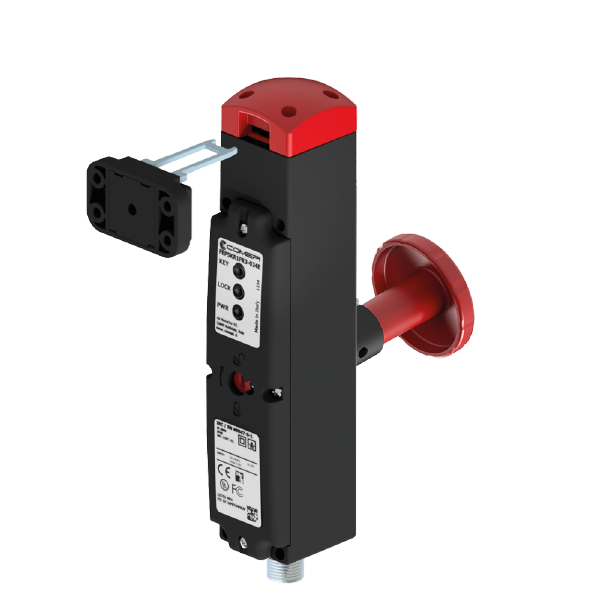

FEPMKR1FR3-024E-A30

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    8 poles M12 male connector
    Standard head orientation 0°

    Electrical interlock: Actuator locked when solenoid is excited.

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A30 – Rear escape release (L=30mm)

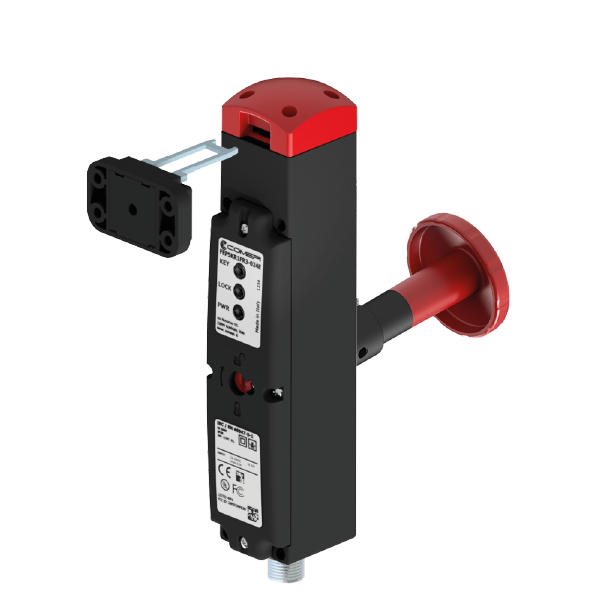

    FEPMKR1FR3-024E-A45

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    8 poles M12 male connector
    Standard head orientation 0°

    Electrical interlock: Actuator locked when solenoid is excited.

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A45 – Rear escape release (L=45mm)

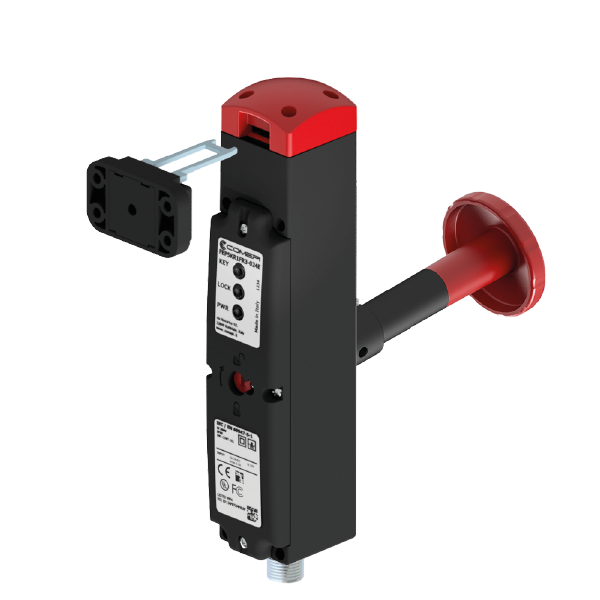

    FEPMKR1FR3-024E-A60

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    8 poles M12 male connector
    Standard head orientation 0°

    Electrical interlock: Actuator locked when solenoid is excited.

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A60 – Rear escape release (L=60mm)

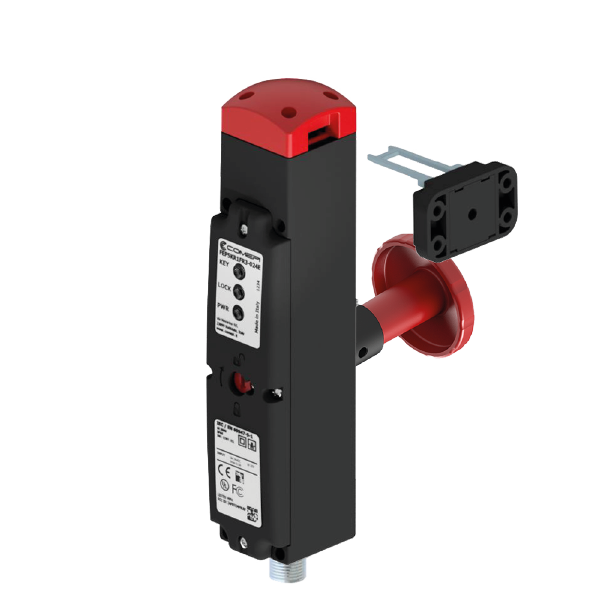

    FEPMKR2FR3-024E-A30

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    8 poles M12 male connector
    Head orientation 90°DX

    Electrical interlock: Actuator locked when solenoid is excited.

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A30 – Rear escape release (L=30mm)

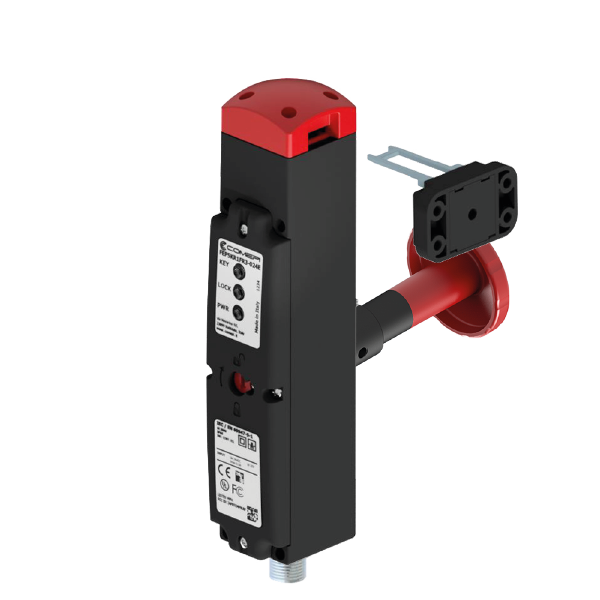

    FEPMKR2FR3-024E-A45

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    8 poles M12 male connector
    Head orientation 90°DX

    Electrical interlock: Actuator locked when solenoid is excited.

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A45 – Rear escape release (L=45mm)

    FEPMKR2FR3-024E-A60

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    8 poles M12 male connector
    Head orientation 90°DX

    Electrical interlock: Actuator locked when solenoid is excited.

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A60 – Rear escape release (L=60mm)

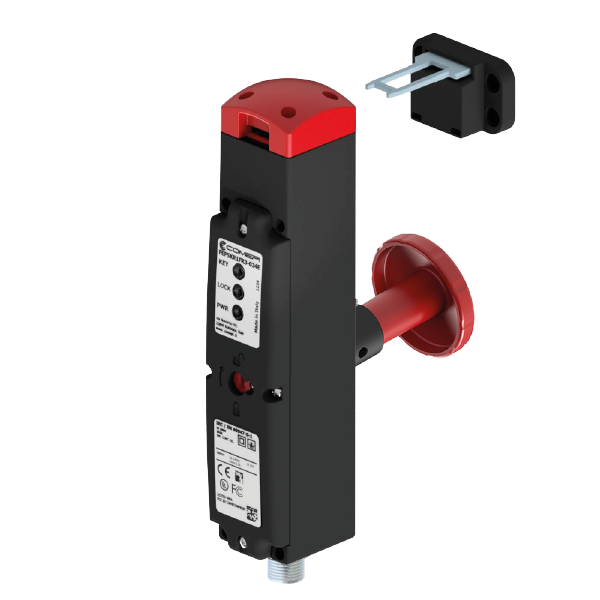

    FEPMKR3FR3-024E-A30

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    8 poles M12 male connector
    Head orientation 180°

    Electrical interlock: Actuator locked when solenoid is excited.

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A30 – Rear escape release (L=30mm)

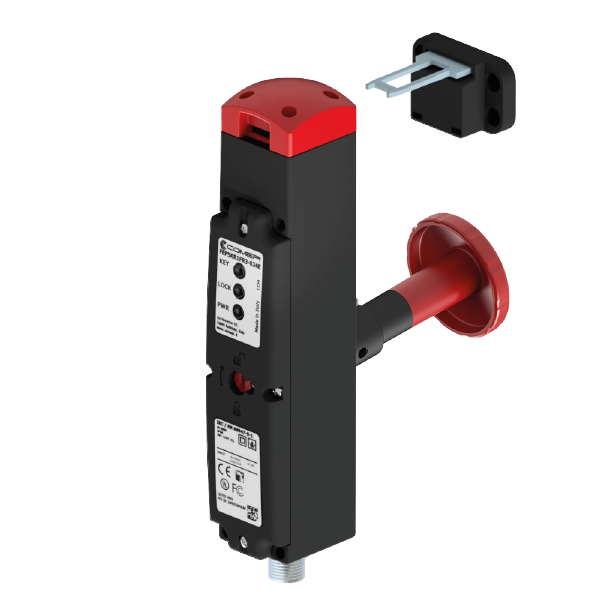

    FEPMKR3FR3-024E-A45

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    8 poles M12 male connector
    Head orientation 180°

    Electrical interlock: Actuator locked when solenoid is excited.

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A45 – Rear escape release (L=45mm)

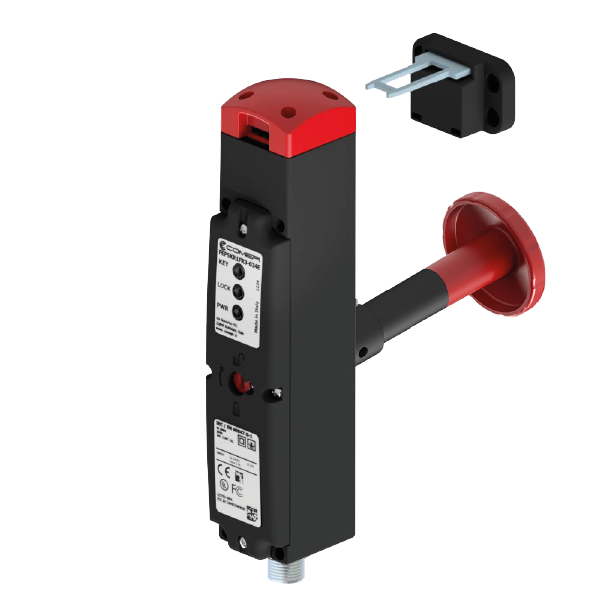

    FEPMKR3FR3-024E-A60

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    8 poles M12 male connector
    Head orientation 180°

    Electrical interlock: Actuator locked when solenoid is excited.

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A60 – Rear escape release (L=60mm)

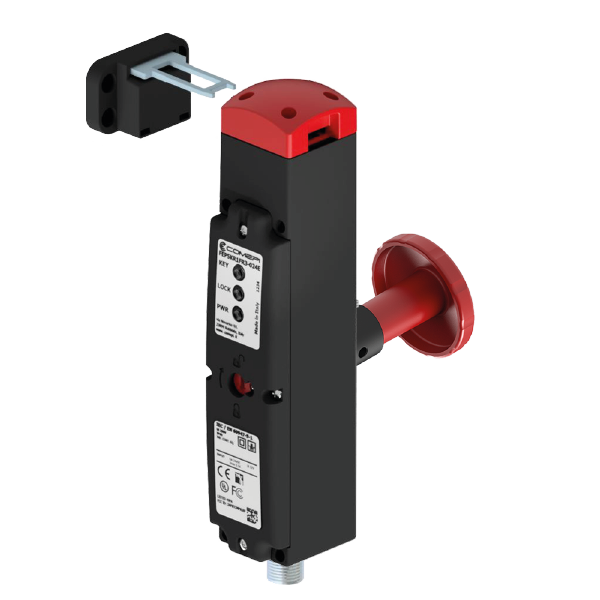

    FEPMKR4FR3-024E-A30

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    M20x1 cable inlet
    Head orientation 270° SX

    Electrical interlock: Actuator locked when solenoid is excited.

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A30 – Rear escape release (L=30mm)

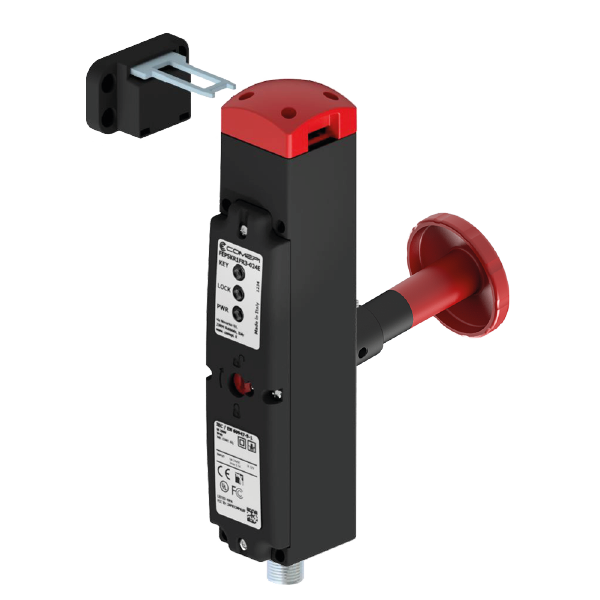

    FEPMKR4FR3-024E-A45

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    M20x1 cable inlet
    Head orientation 270° SX

    Electrical interlock: Actuator locked when solenoid is excited.

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A45 – Rear escape release (L=45mm)

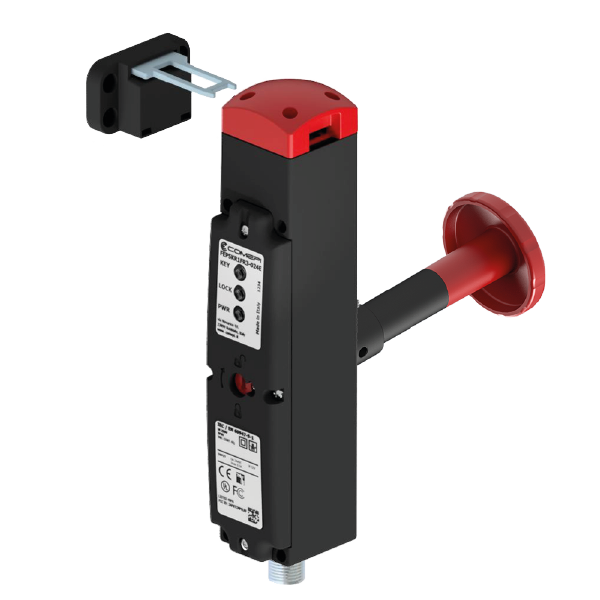

    FEPMKR4FR3-024E-A60

    Electromagnetic interlocking device RFID coded
    Thermoplastic head and thermoplastic enclosure
    M20x1 cable inlet
    Head orientation 270° SX

    Electrical interlock: Actuator locked when solenoid is excited.

    24Vdc supply solenoid

    Outputs
    two safety contacts for door status monitoring (2NC)
    One signalling contact for actuator status monitoring (1NC)

    A60 – Rear escape release (L=60mm)
