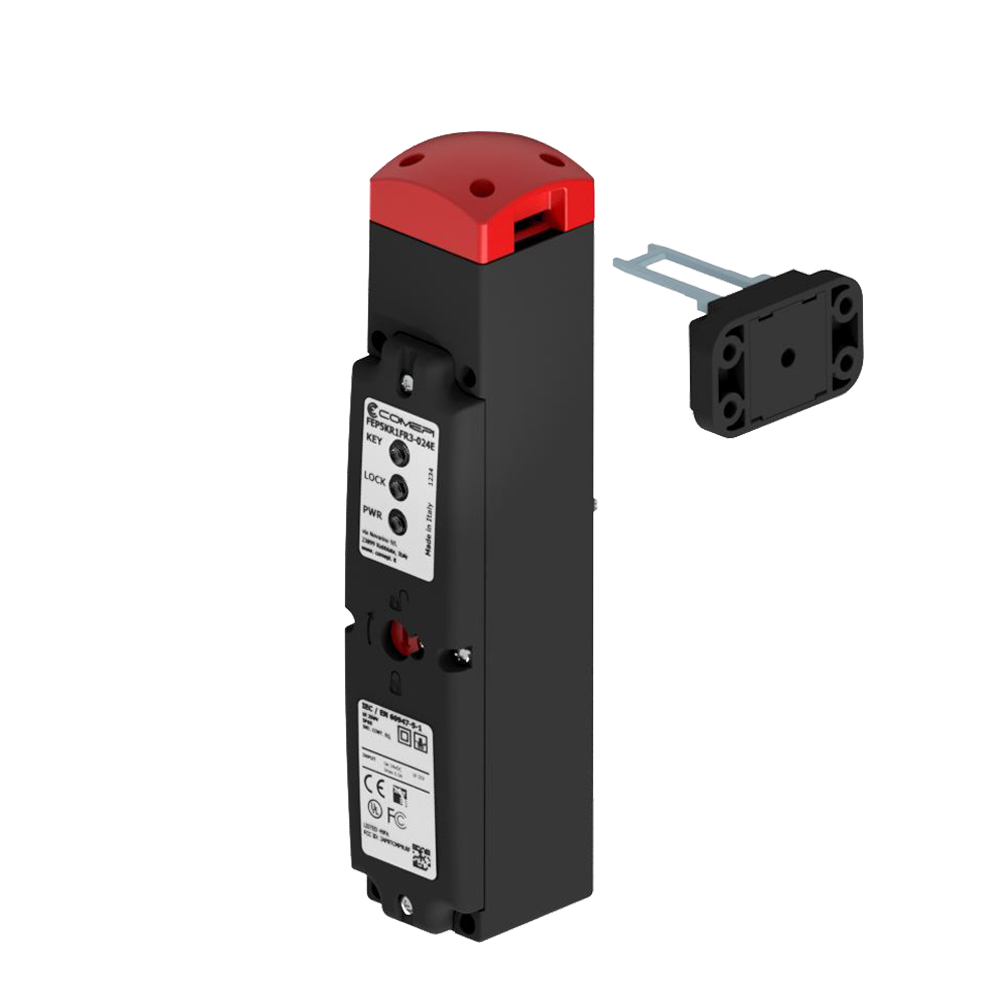

Electromagnetic interlocking device RFID coded
Thermoplastic head and thermoplastic enclosure
M20x1 cable inlet
Standard head orientation 0°

Electrical interlock: Actuator locked when solenoid is excited.

24Vdc supply solenoid

Outputs
two safety contacts for door status monitoring (2NC)
One signalling contact for actuator status monitoring (1NC)

Electromagnetic interlocking device RFID coded
Thermoplastic head and thermoplastic enclosure
M20x1 cable inlet
Head orientation 90° DX

Electrical interlock: Actuator locked when solenoid is excited.

24Vdc supply solenoid

Outputs
two safety contacts for door status monitoring (2NC)
One signalling contact for actuator status monitoring (1NC)

Electromagnetic interlocking device RFID coded
Thermoplastic head and thermoplastic enclosure
M20x1 cable inlet
Head orientation 180°

Electrical interlock: Actuator locked when solenoid is excited.

24Vdc supply solenoid

Outputs
two safety contacts for door status monitoring (2NC)
One signalling contact for actuator status monitoring (1NC)

Electromagnetic interlocking device RFID coded
Thermoplastic head and thermoplastic enclosure
M20x1 cable inlet
Head orientation 90° SX

Electrical interlock: Actuator locked when solenoid is excited.

24Vdc supply solenoid

Outputs
two safety contacts for door status monitoring (2NC)
One signalling contact for actuator status monitoring (1NC)
