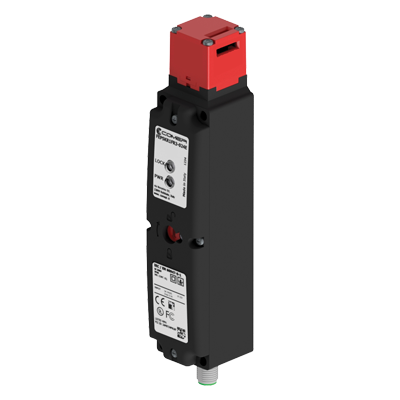

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

LED signalling for guard status detection: LED LOCK green if the gate is locked, LED LOCK red if the gate is unlocked.

Electrical interlock: actuator blocked when the solenoid is excited.

Solenoid supply voltage: 24V DC
8 poles male connector

Microswitch FL1:

One contact moved by actuator (1NC)
Two contacts moved by solenoid (2NC)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Standard head orientation 0°

LED signalling for guard status detection: LED LOCK green if the gate is locked, LED LOCK red if the gate is unlocked.

Electrical interlock: actuator blocked when the solenoid is excited.

Solenoid supply voltage: 24V DC
8 poles male connector

Microswitch FL2:

One contact moved by actuator (1NO)
Two contacts moved by solenoid (2NC)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Head orientation 90°

LED signalling for guard status detection: LED LOCK green if the gate is locked, LED LOCK red if the gate is unlocked.

Electrical interlock: actuator blocked when the solenoid is excited.

Solenoid supply voltage: 24V DC
8 poles male connector

Microswitch FL1:

One contact moved by actuator (1NC)
Two contacts moved by solenoid (2NC)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Head orientation 90°

LED signalling for guard status detection: LED LOCK green if the gate is locked, LED LOCK red if the gate is unlocked.

Electrical interlock: actuator blocked when the solenoid is excited.

Solenoid supply voltage: 24V DC
8 poles male connector

Microswitch FL2:

One contact moved by actuator (1NO)
Two contacts moved by solenoid (2NC)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Head orientation 180°

LED signalling for guard status detection: LED LOCK green if the gate is locked, LED LOCK red if the gate is unlocked.

Electrical interlock: actuator blocked when the solenoid is excited.

Solenoid supply voltage: 24V DC
8 poles male connector

Microswitch FL1:

One contact moved by actuator (1NC)
Two contacts moved by solenoid (2NC)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Head orientation 180°

LED signalling for guard status detection: LED LOCK green if the gate is locked, LED LOCK red if the gate is unlocked.

Electrical interlock: actuator blocked when the solenoid is excited.

Solenoid supply voltage: 24V DC
8 poles male connector

Microswitch FL2:

One contact moved by actuator (1NO)
Two contacts moved by solenoid (2NC)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Head orientation 270°

LED signalling for guard status detection: LED LOCK green if the gate is locked, LED LOCK red if the gate is unlocked.

Electrical interlock: actuator blocked when the solenoid is excited.

Solenoid supply voltage: 24V DC
8 poles male connector

Microswitch FL1:

One contact moved by actuator (1NC)
Two contacts moved by solenoid (2NC)

Electromagnetic safety switch with separated actuator – Termoplastic casing and termoplastic head – Head orientation 270°

LED signalling for guard status detection: LED LOCK green if the gate is locked, LED LOCK red if the gate is unlocked.

Electrical interlock: actuator blocked when the solenoid is excited.

Solenoid supply voltage: 24V DC
8 poles male connector

Microswitch FL2:

One contact moved by actuator (1NO)
Two contacts moved by solenoid (2NC)
